3x4-8

---Duty Point---

Flow: 100 m³/hr

Head: 55.5 m

Eff: 74%

Power: 15.4 kW

NPSHr: 3.05 m

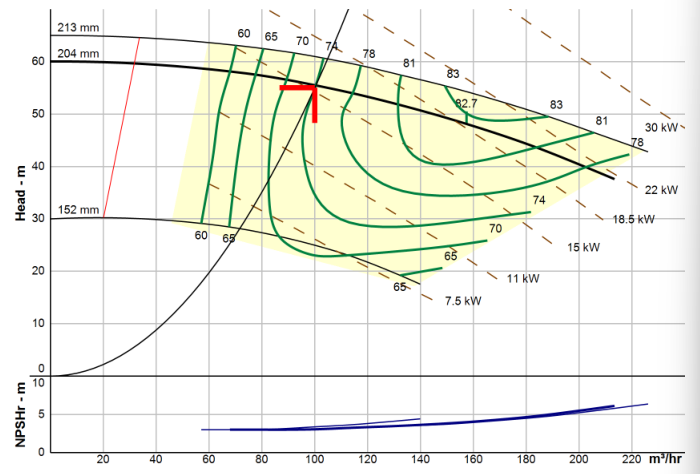

--- Design Curve ---

Shutoff Head: 60 m

Shutoff dP: 444 kPa

Min Flow: 31.5 m³/hr

BEP: 82.7% @ 157 m³/hr

NOL Power:

21.6 kW @ 213 m³/hr

--- Max Curve ---

Max Power:

25.5 kW @ 226 m³/hr
